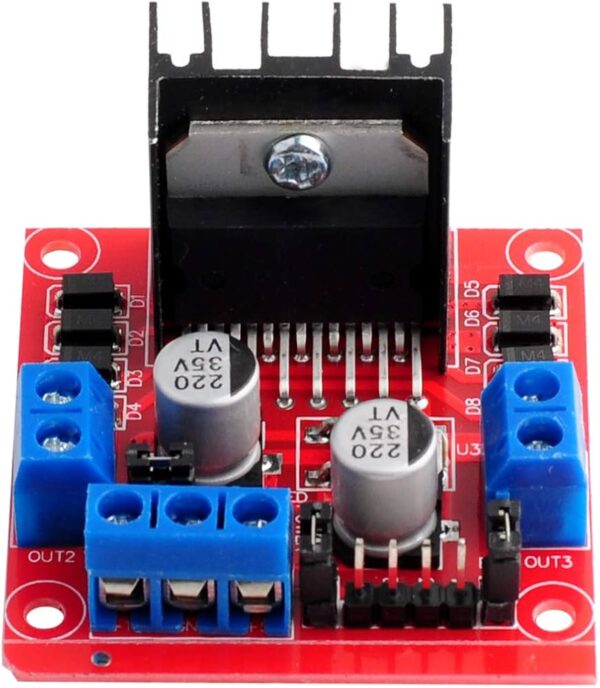

Robust dual H-bridge motor driver with L298N IC for driving two DC motors or one stepper motor with independent speed and direction control. Supports wide input voltage range (5 V–35 V) and peak 2 A per channel, with screw terminals and heat sink for reliable operation in automation, smart control systems and educational robotics. Built-in logic regulator and PWM control ensure easy integration into motor control applications.
- Driver IC: Dual H-Bridge L298N motor driver chip
- Motor Supply Voltage: 5 V – 35 V DC
- Output Current: Up to 2 A per channel (peak current capability ~3 A)
- Channels: Two independent H-bridge outputs (two DC motors or one stepper)
- Logic/Control Voltage: 4.5 V – 5.5 V TTL logic level inputs
- PWM Control: Speed modulation via PWM enable pins
- Onboard Regulator: Optional 5 V regulator for logic supply
- Indicator LEDs: Power and control state indicators
- Thermal and Current Sensing: Heatsink and sensing provisions for stability
- Dimensions: ~43 × 43 × 27 mm (module board)
- Weight: ~26 – 35 g (module)
- Operating Temp: –25 °C to +130 °C
