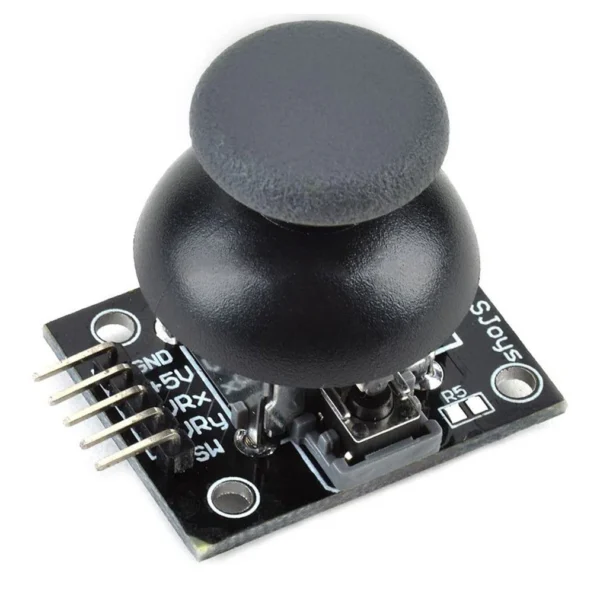

High-accuracy XY joystick module with built-in push-button switch and smooth analog output for directional control. Ideal for motorized systems, navigation robots, smart home control panels, and educational STEM kits. Offers stable movement response, long life, and easy integration into embedded designs.
Technical Specifications
- Type: XY 2-Axis Analog Joystick Module
- Axes: X-axis & Y-axis analog control
- Switch: Integrated tactile push-button
- Operating Voltage: 3.3 V – 5 V
- Interface Pins: GND, VCC, VRx, VRy, SW
- Output Type: Analog voltage output (VRx, VRy), digital output for switch
- Movement Angle: Approx. ±30°
- Life Cycle: >100,000 operations
- Dimensions (L×B×H): ~40 × 26 × 32 mm
- Weight: ~15–18 g
- Mounting: PCB with 4 mounting holes
- Connector Type: Standard 2.54 mm header pins
